DELTA®-MS DRAIN

An innovative compact profiled membrane with laminated geotextile for the protection of foundation walls and vertical surface drainage.

Advantages

  • Confirmed service life up to 50 years in accordance with the DIN EN 13252 standard.
  • High drainage capacity of about 0.6 l/s·m, exceeding the requirements of DIN 4095.
  • Quick and safe removal of groundwater and seeping water.
  • High compressive strength of about 500 kN/m².
  • More than 8,900 studs per m² provide even load distribution.
  • Protection of water and thermal insulation from mechanical damage.
  • Compact stud height of about 4 mm allows to reduce the roll size.
  • One roll contains about 60 m² of material.
  • Made from 100% virgin material without secondary materials.
  • Complies with DIN EN 13252, DIN 4095 and DIN 18533 standards.

Application

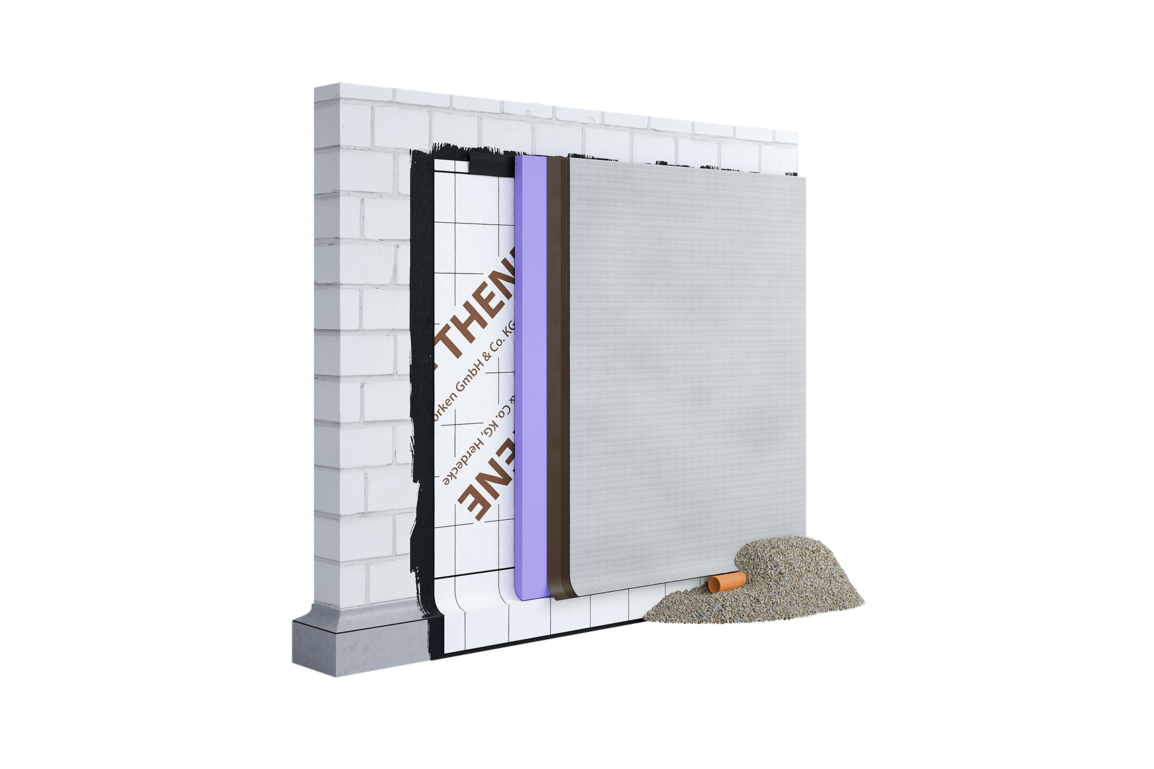

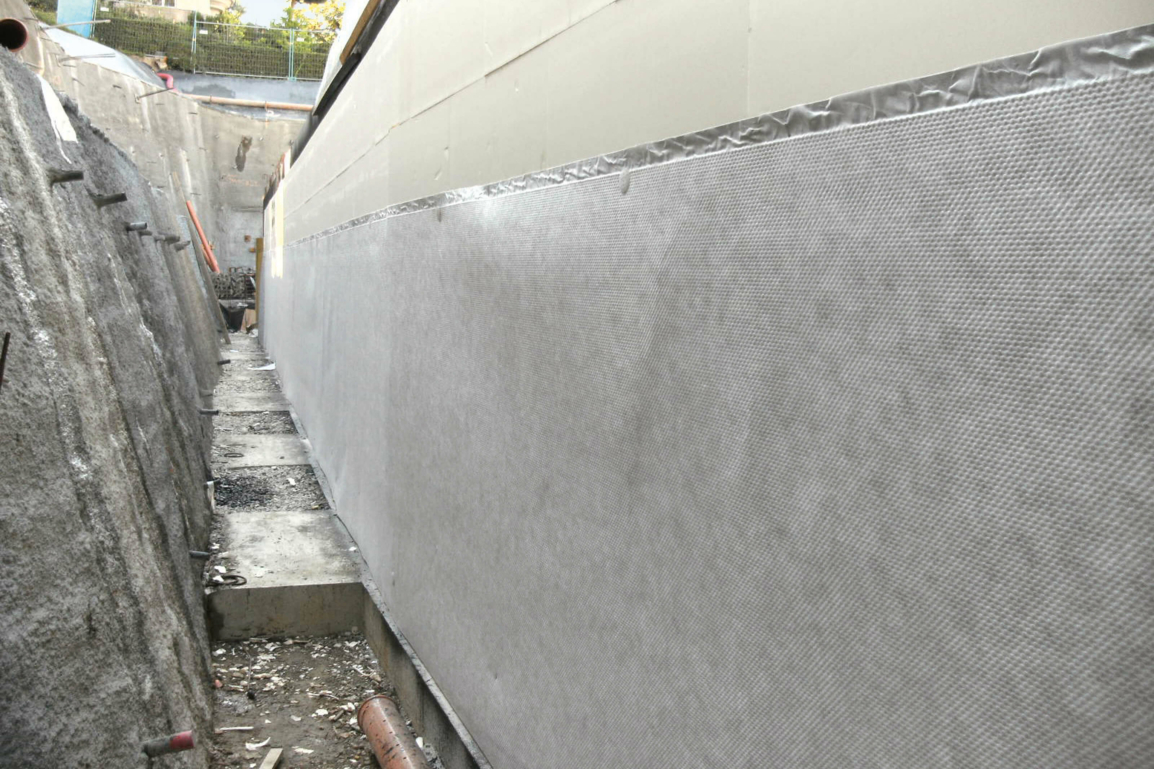

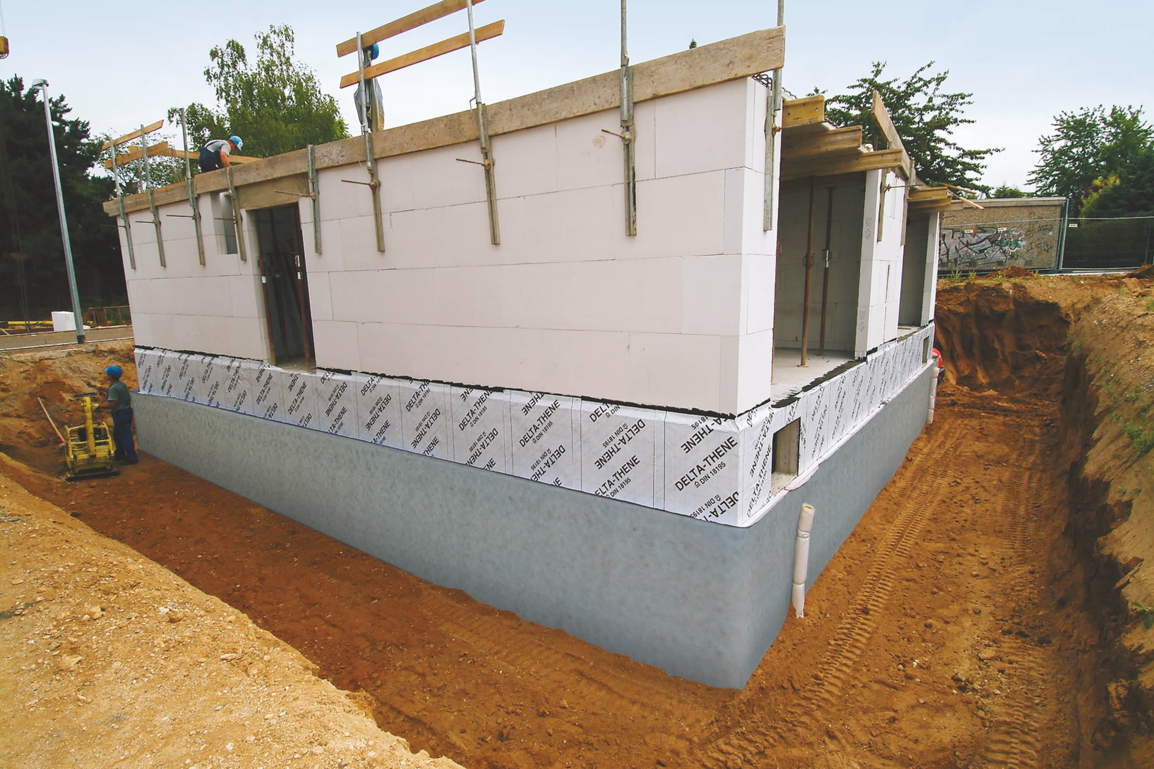

  • Protection of foundation walls and organization of surface drainage.
  • Suitable for basement walls and submerged structures.
  • Can be used at depths up to 10 meters.

Technical Data

  • Material: profiled membrane made of high-density polyethylene with laminated hydrophilic geotextile made of polypropylene.
  • Stud height: about 4 mm.
  • Air gap: about 2.6 l/m².
  • Operating temperature range: from -30 °C to +80 °C.
  • Characteristic pore size: about 0.06 mm.
  • Drainage capacity: about 0.6 l/s·m.
  • Compressive strength: about 500 kN/m².
  • CE-compliance: DIN EN 13252.
  • Roll size: 30 m × 2 m.
