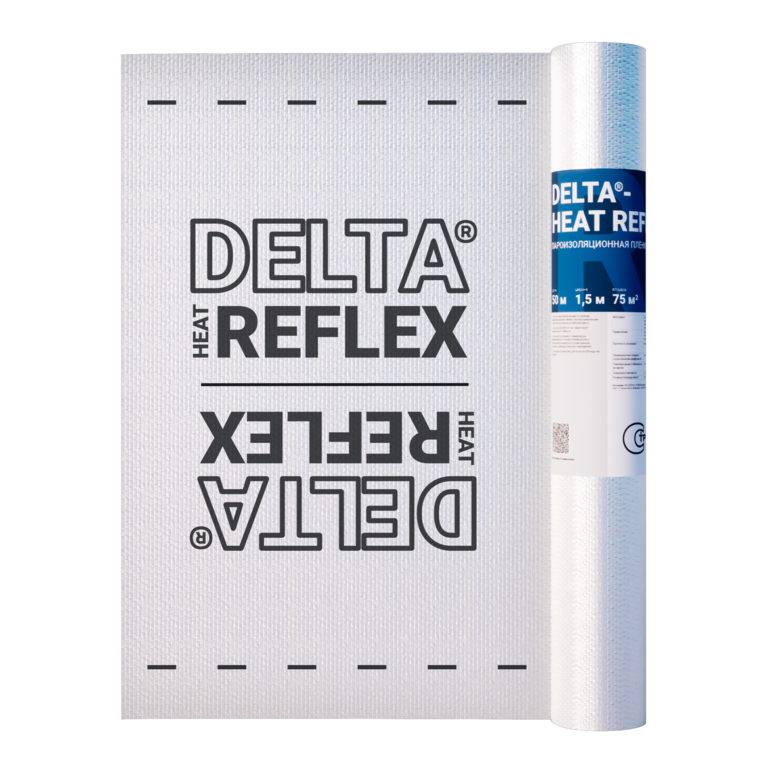

DELTA®-HEAT REFLEX
Durable energy-saving 4-layer air and vapor insulation film with heat-reflective coating for sloping and flat roofs, walls and coverings.
- Provides 100% reliability against water vapor penetration, thanks to almost zero vapor permeability and complete air impermeability.
- Sd not less than 130 m.
- Has high durability and flexibility even at low temperatures.
- Sealing joints and connections protects against convection vapor transfer.

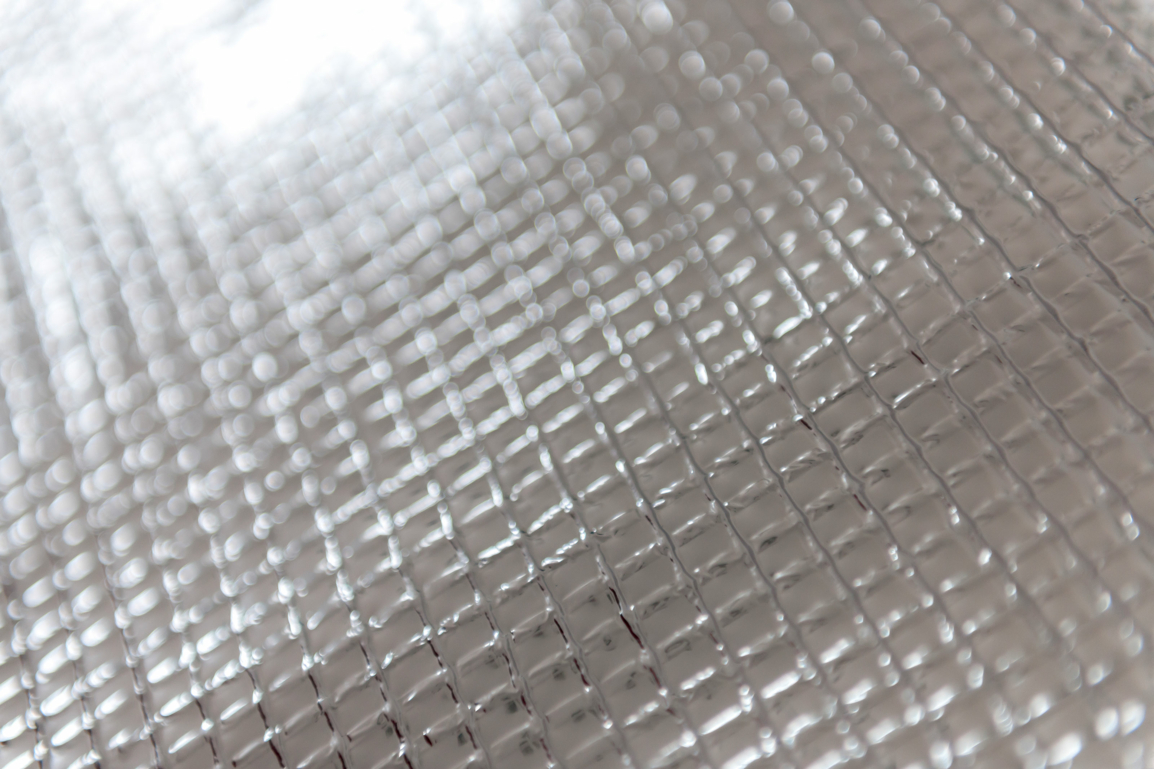

- Increases roof insulation by approximately 10% thanks to the aluminum reflective layer.
- The aluminum coating is protected from corrosion by a transparent polyester film.
- Suitable for use in industrial roofs with installation on a profile or concrete base.
Application
- High durability and flexibility allow installation in large areas without the risk of damage.
- Easily withstands insulation load.
- Recommended for homes with permanent living.
- Suitable for damp rooms: pools, bathrooms, kitchens.
- Used in residential and industrial buildings.
Technical data
- Material: multi-layer vapor-impermeable reinforced film of polyethylene with an aluminum reflective layer, protected by a transparent polyester coating. Primary technological raw material.
- Used for air and vapor insulation of sloping / flat roofs, walls, coverings. Used in rooms with normal and high humidity.
- Tear resistance: approximately 450 N/5 cm in length / approximately 350 N/5 cm in width (DIN EN 12311).
- Sd equivalent vapor diffusion resistance thickness: not less than 130 m.
- Operating temperature range: from -40 °C to +80 °C.
- Weight: approximately 150 g/m².
- Roll weight: approximately 12 kg.
- Dimensions / roll area: 1.5 x 50 m / 75 m².
